Brand : NABARUPAYAN™

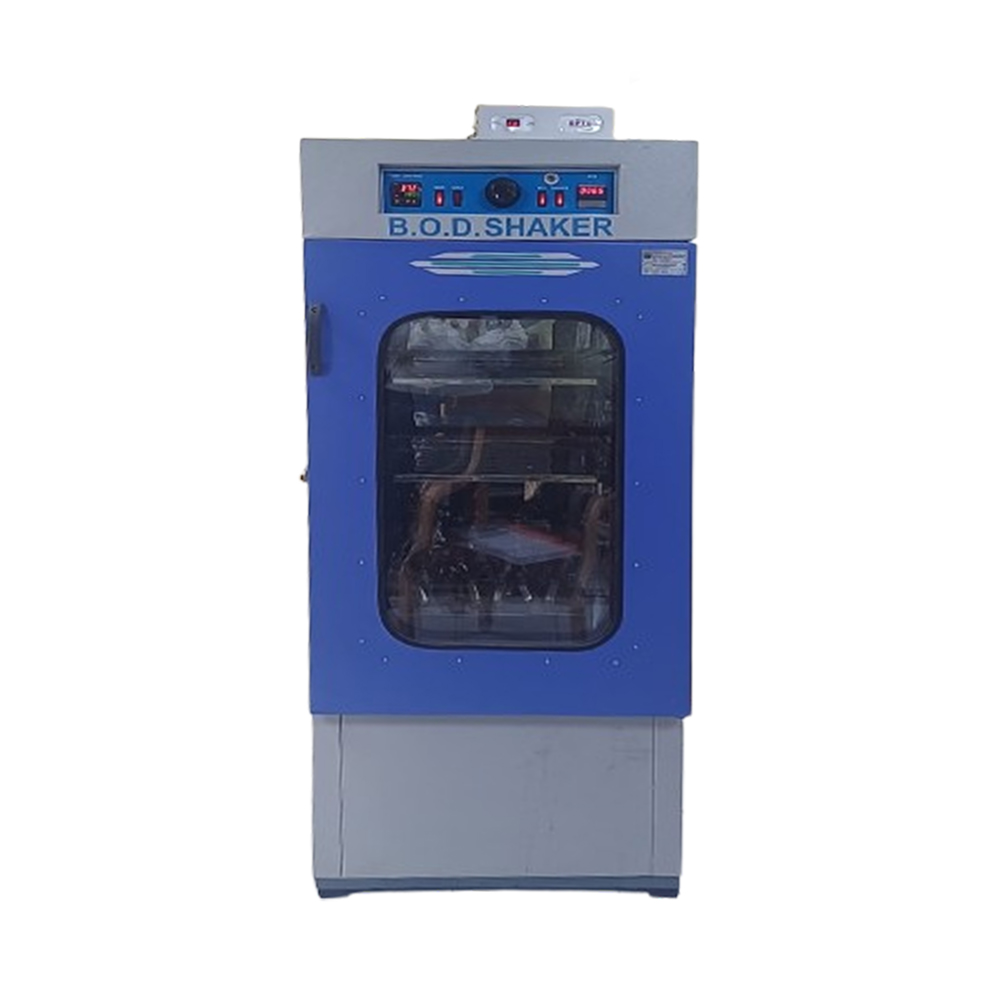

BOD INCUBATOR SHAKER: This is a combination of B.O.D. Incubator with Rotary Shaker. The standard size provided for a total incubator space where in shaking cultures mounted on a shaker platform as well as on static trays
Construction: Double walled construction inner chamber is of Stainless Steel Sheet Outer chamber Made of Mild Steel sheet with powder coated
Insulation: With NON-Hygroscopic Glass Fiber.
Doors: Double door. Inner door full view Plexi glass. The outer door will be double walled duly insulated and provided with magnetic strip gasket with proper sealing and locking device with Handle.
Air circulation: By means of a smooth running blower motor to maintain uniform temperature inside working chamber
Cooling: CFC Free refrigeration consists of a hermetically sealed ISI marked and approved refrigeration compressor with balanced condensing unit.
Heating: Provided by a pair of replaceable type sealed air heaters made of nickel-chromium resistance wire.
Illumination: Built in operated on opening outer door
Temperature Range: 5°C to 50°C with an accuracy of ±1°C
Temperature Control: By Microprocessors based PID Digital Temperature Controller-cum-Indicator with, PT-100 sensor
Shaking Device: Rotary motion shaking device to run by a DC motor with an Auto variable control, complete with Digital speed indicating RPM Meter.
Shaking Speed: 50 to 200 RPM with Digital Display
**Shaking Platform/Tray: 1No. Stainless Steel shaking platform is provided to accommodate 9Nos. X 250ml /
500ml conical flask by means of lotus Clamp with spring arrangement for proper
Holding. ( ** OR AS PER CUSTOMERS REQUIREMENTS.)
Static Tray: 1 no. stainless steel perforated tray is to be provided.
Safety Device: A built-in Delay/Relay system is provided in the control circuit to safeguard the
refrigeration compressor against abrupt starting in the event of restoration of power after
load shedding.
Technical Specification:
Temperature Range: 5°C to50°C with accuracy of ±1°C
Temperature Control: By Microprocessors based PID Digital Temperature Controller-com-Indicator
with PT-100 sensor. 1No. Voltmeter
Shaking Speed: 50 to 200 RPM with Digital Display
Power Required: 220/230 V. Single phase 50HZ, AC mains .
Built in Voltage Stabilizer.
Working area CAPACITY:
12 Cuft ( Model: NR/BODS-12)
10Cuft ( Model: NR/BODS-10)
8Cuft (Model: NR/BODS-8)
6 Cuft. (Model: NR/BODS-6)
